Quick report 1

To blog continued live, I will write quick reports of the ongoing work on projects. Time goes by, work in full swing. Now think over circuit controller for each motor, build a test circuit on the breadboard. When everything is working as it is necessary and there would be issues - Develop PCB. For the tests had to buy L297 chip at a local store for the full amount (4,75 €), as previously ordered 5 chips with China (4,50 € per 5pcs) successfully lost in the bustle of Christmas somewhere on the way. While I bought only one, for the driver for the one motor it will be enough.

Creative mess :)

Now I calculate termination resistors for current measurement in motor windings to control congestion, think how to modify the build ready L298 to connect them.

Work continues!

Unfortunately, now it is impossible to give the project as much time that was planned, but work continues.

Were installed legs and working table surface (it is not present on the photo).

Workways classification

I found a funny picture on the network :)

In each case, each chooses his own way and the method)

Christmas begins!

Today, at last I received first a parcel from China!

There are 2m of belt, pulleys and hex-key.

"In waiting of parts" or "Thoughts about the electronic part"

So, I ordered timing belts and pulleys from China. Now I am waiting for them. Without this parts, the following works with hardware are not possible. On the other hand, there is time to think about electronic or programming part. The question remains about the power electronics for controlling the motors.

Small changes in the blog

From today this blog will be in English. Blog on the Russian is available from the the menu above. All entries would be duplicated on the Russian, but this will be the main blog.

Start of works

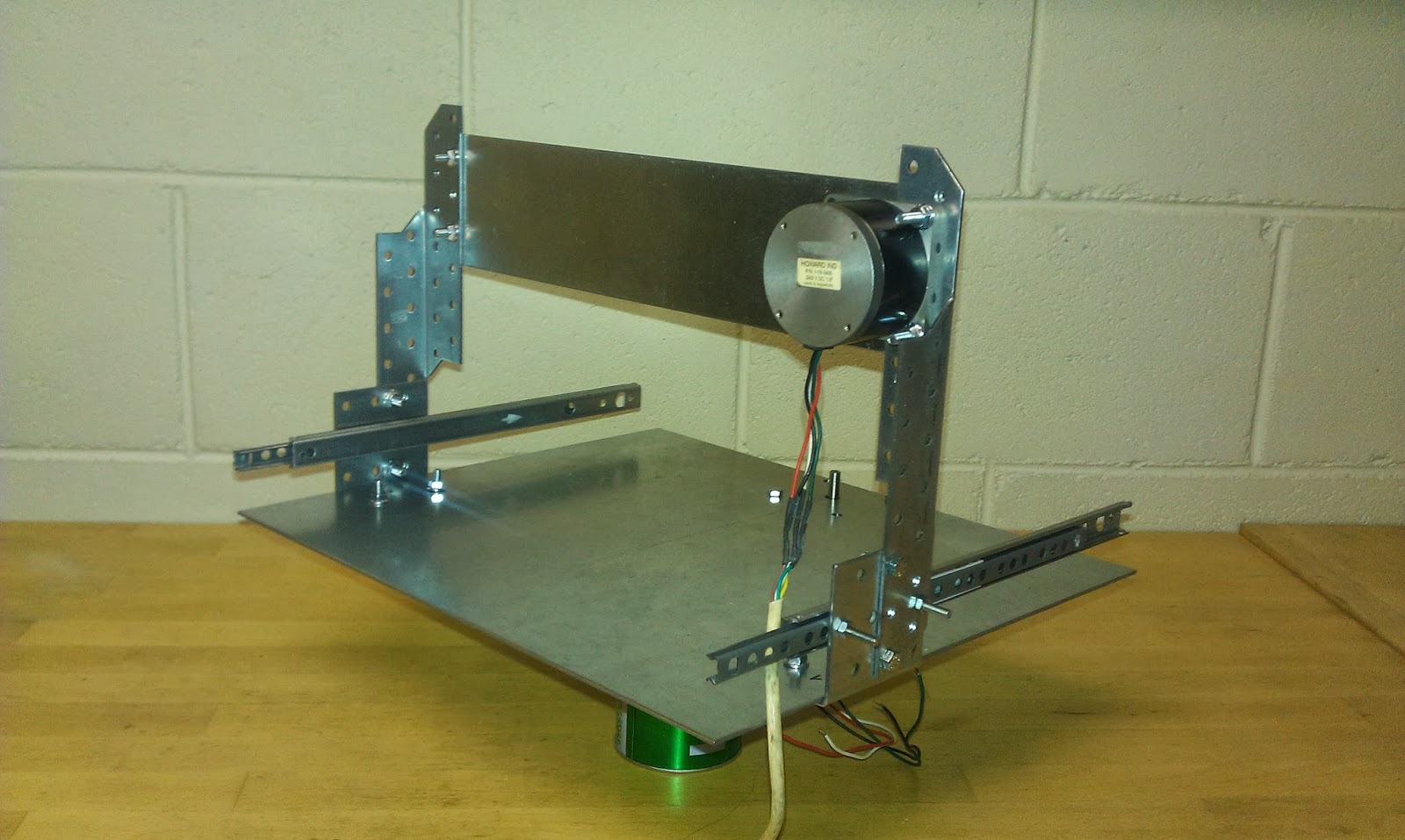

Today, after spending about half of hour in the hardware store, I have found the necessary details. Once I drilled all the necessary holes and assembled construction as "rough draft".

Start

I have finally decided to return to the project and bring it to fruition. I already have a lot of decisions, now you need to bring them together. I decided to abandon from the old construction (from the wood). The new design will be made from metal.
